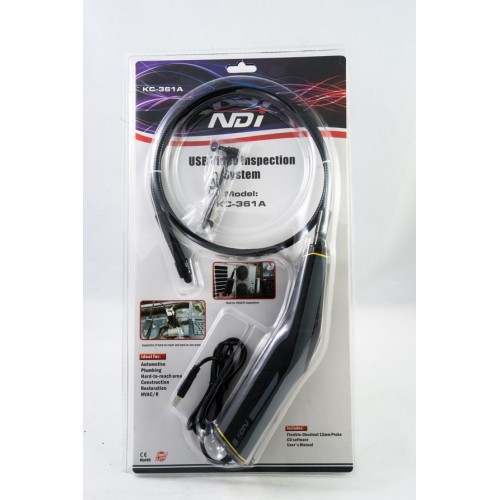

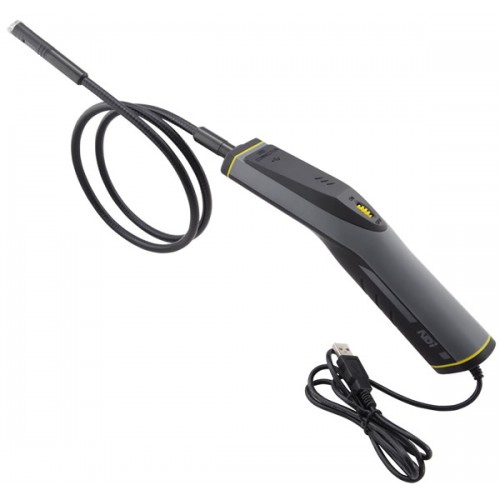

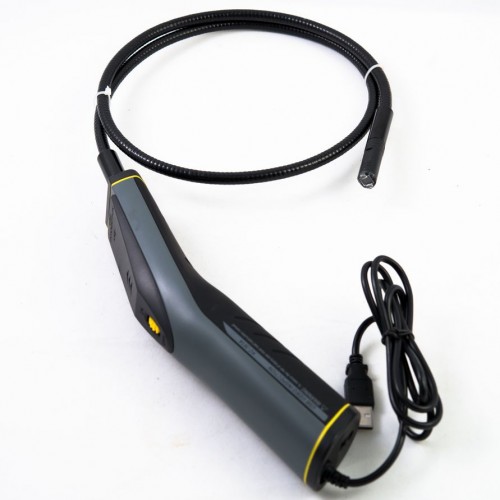

USB Video Inspection Camera Borescope Endoscope 361A
KC-361A USB Video inspection has been designed as a user friendly and economical way of solving hidden problems and increasing productivity. (Eg. Inspect vent pipe and system of air conditioner, machine equipment, engine and so on).
The computer connection facilitate you to transmit the real-time image to computer for watching and collecting. The camera head is connected to the probe and with adjustable LED lights, which helps you to reach gaps and holes. The camera head can equip with several accessories, which makes it flexible. The magnetic tip is used to pick up small metal objects. The mirror tip is easy to view the 90 ° angle. The hook is used to grab onto objects.

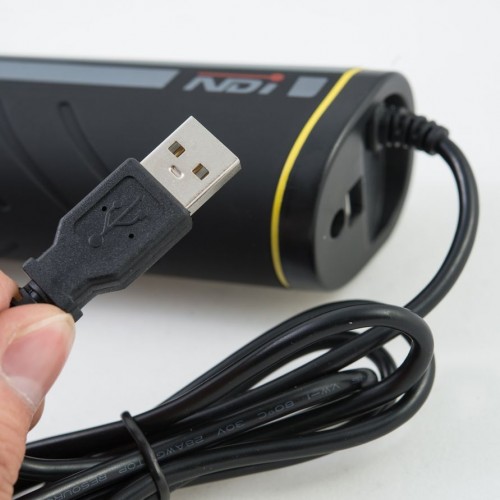

KC-361A USB Video inspection has USB 2.0 connection, which no need outer power but the computer is the power supply. It has the advantages of small size、clear image、stable performance、easy operation and portability. It is widely used in applications such as the industry, the building, the aviation, the vehicles maintenance.
Technical Specifications
Name USB Video inspection
Model KC-361A
Recommended use Indoor
Viewable angle 60°
Focal length 50mm
Diameter of camera head Standard camera head 12mm(Magnetic tip、Hook tip 、Mirror tip included)
Connection Standard USB interface
Valid pixels 300 thousand pixels
Image size 640×480
Attached cable 1m or customized (max length 3m)
Probe length IP67
Light source High lighting LED
Power supply USB computer supply
Operating temperature 0℃~45℃
Operating humidity RH 5%~95% non-condensing
Storage temperature -20℃~+60℃,≤85%
Dimension 266mm×73mm×80mm
Weight About 362 g
