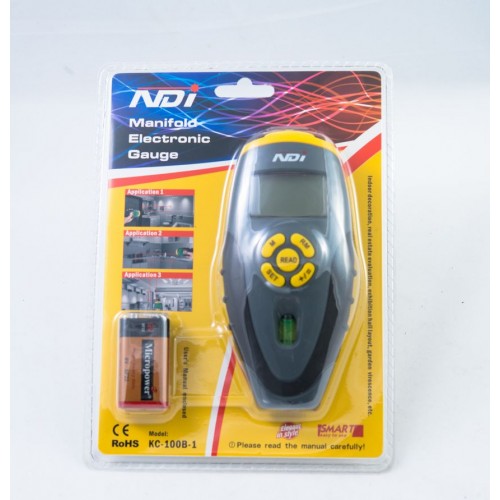

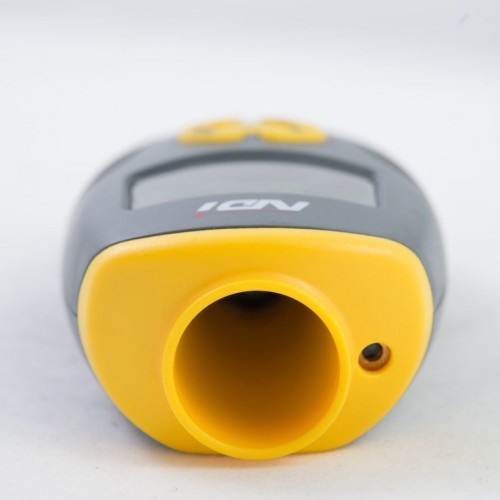

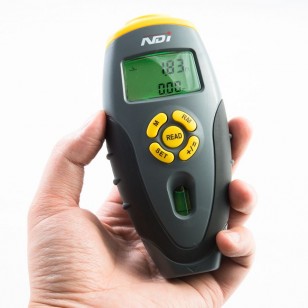

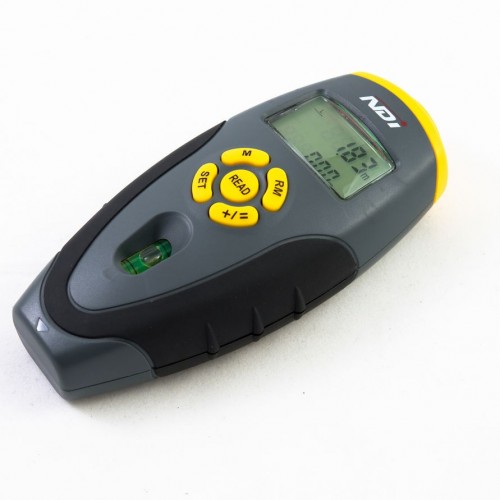

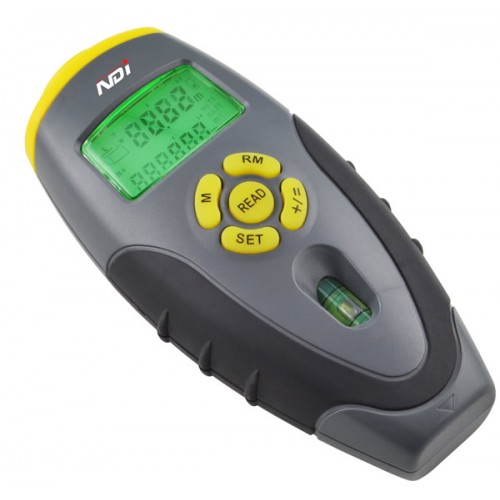

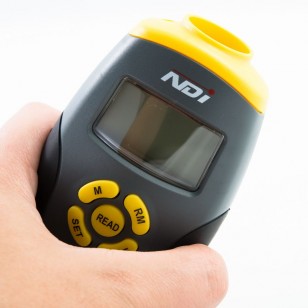

Ultrasonic Distance Measurement 100B-1
100B-1 manifold electronic gauge determines the distance to the object through electronic signals quickly and effective, the tool can display the result on the tow-row LCD with back light. The tool with built in computer chip has the function of key indication and memory, and it can be used in continuous accumulative measurement, automatic areas and volume counting and is an ideal tool for building and decoration industries (for example, land agent, upholstery designer and craftsman, etc.)
The tool has the function of laser orientation, it will send out a line of highlighted red laser beam to make you aim at the object easily when using. The automatic temperature compensation function of the tool can make the measuring result more accurately, and at the same time show the current environment temperature precisely.

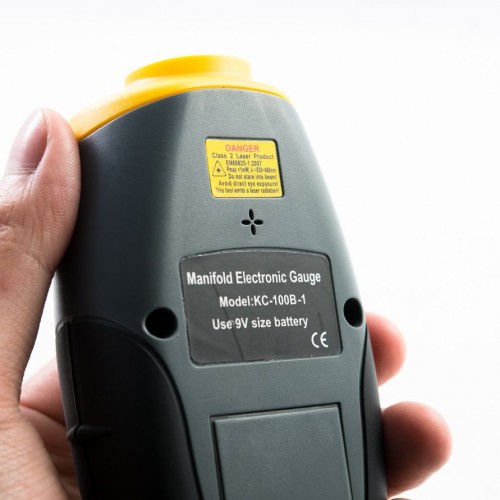

100B-1 manifold electronic gauge is the Class II laser tool conforming to EN 60825-1 international safety rule.
Technical Specifications
Name |
Manifold electronic gauge |
|
Type |
KC-100B-1 |
|
Recommended use |
Indoor |
|
Measurement range |
2’ to 53’ (0.6 to 16m) |
|
Calculation range |
Length |
9999’ 11’’ (9999.99m) |
Area |
99999.9 sq ft (99999.9㎡) |
|
Volume |
999999 cu ft (999999m3) |
|
Resolution |
0.01m |
|
Wavelength of laser |
630~660nm |
|
Temperature range |
0℃ to +40℃ |
|
Laser Class |
Class II |
|
Power supply |
One 9V battery |
|
Power consumption |
<50mA |
|
Automatic off |
The tool will be automatically off after 30 seconds disabling. |
|
Operating temperature |
0℃ to 40℃ |
|
Operating humidity |
30%~70% |
|
Storage environment |
-20℃~+60℃,≤85%(w/o battery) |
|
Size |
142mm×70mm×40mm |
|
Weight |
About 110g |
