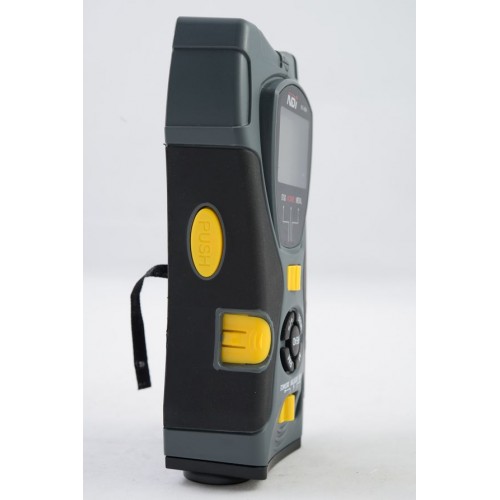

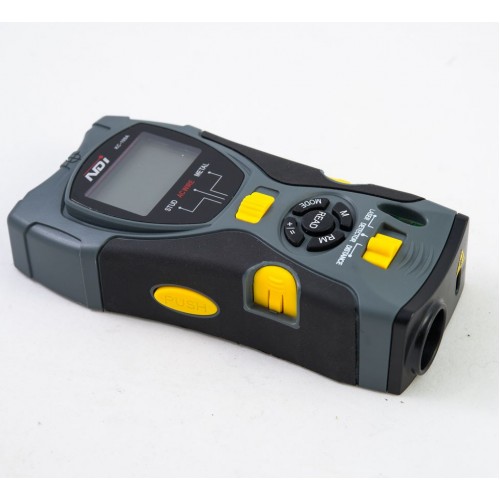

5 in 1 Multi function Super Machine
ultrasonic distance measurement / laser level / stud finder for wood / metal / AC wire
Why buy 5 different gauges cost more than $100?
Now all in one, save your money and space!!

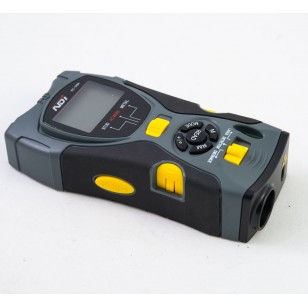

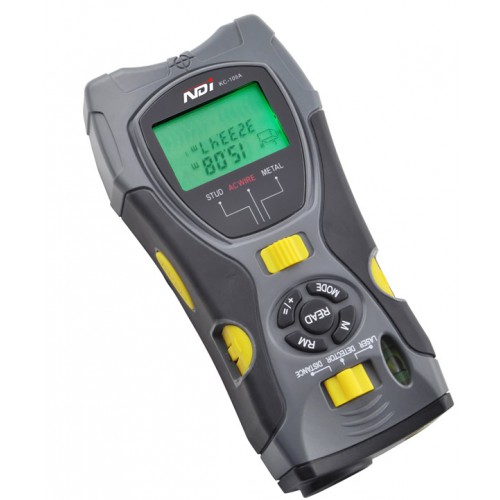

5 in 1 multifunction gauge used integration design, which could achieve distance measurement, stud detection, laser mark, etc. Tool adopts the LCD screen with backlight, which can show various measure results, it is easy to operate and light to carry. It is an ideal tool for building and decoration industries (for example, real estate agent, upholstery designer and craftsman, etc.)

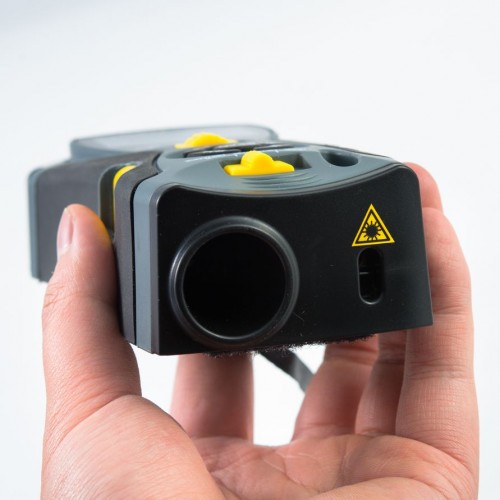

Distance measurement: The tool can effectively measure object’s distance within 16 meters. It contains the functions of sound indication for pressing key, temperature display and memory, which can conduct consecutive measurements, automatic area and volume calculation. Convenient location and level bubble assistant locating function can bring your work to a new level.

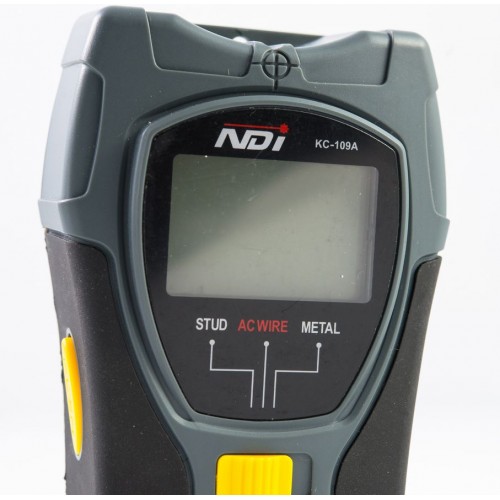

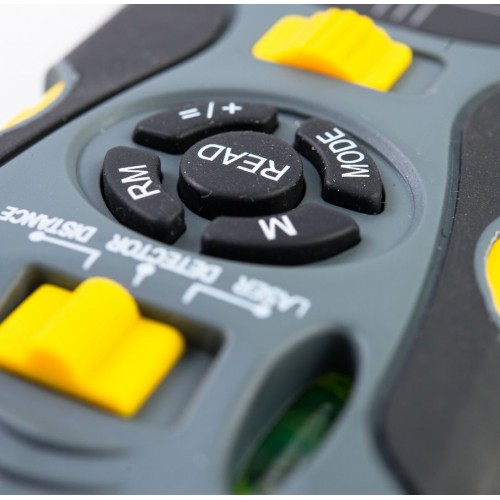

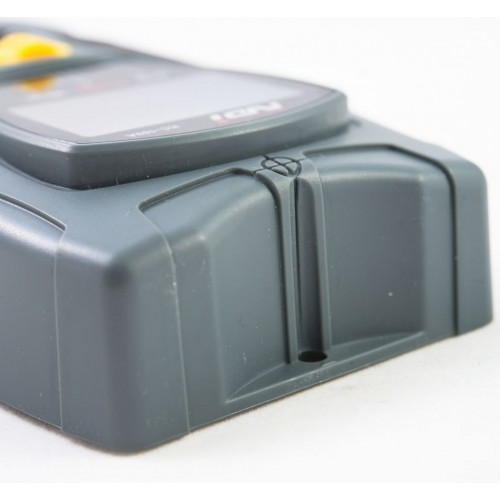

Stud detection: The tool can detect the position of joists, AC live wires or metals. It will calibrate automatically after turning on. Select mode for joists, AC live wires or metals detection by setting the mode switch. Once approaching the edges of joists, AC live wires or metals are detected, the scanner will send out sound indication and you can easily mark the central position of the measured surface through the marker slot on top of the tool with pencil. The function of alarming for AC live wires will duly remind you of noticing whether there are AC live wires behind the wall, no matter functional switch is set on joists or metal.
Laser mark function: The tool can generate a visible red laser line on the surface of objects. It is convenient for you to choose the desired position while constructing. The tool also has the pin fixation function for using on the wall.

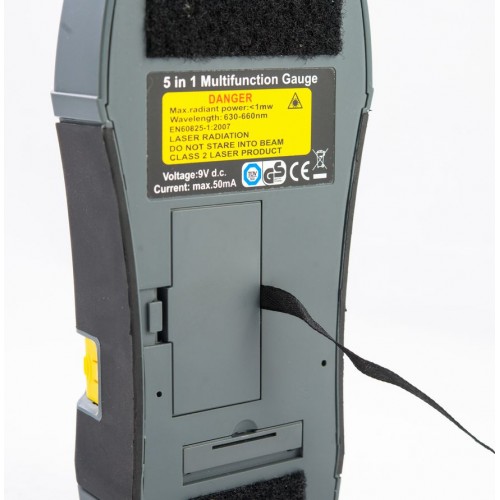

KC-109A Multifunction gauge is a Class 2 laser tool conforming to the EN 60825-1：1994+A1：2002+A2：2001 safety rule.
Technical Specifications
|
Name |
5 in 1 Multifunction Gauge |
|||
|
Type |
KC-109A |
|||
|
Recommended use |
Indoor or indirect sunlight |
|||
|
Length of laser line |
2m |
|||
|
Width of laser |
<5mm |
|||
|
Power of laser |
<1mW |
|||
|
Wavelength |
630～660nm |
|||
|
Laser class |
Class Ⅱ |
|||
|
Measure distance |
Measurement range |
2′to 53′（0.6～16m） |
||
|
Calculation range |
Length |
9999′11″（9999.99m） |
||
|
Area |
99999.9 sq ft（99999.9m2） |
|||
|
Volume |
999999 cu ft（999999m3） |
|||
|
Resolution |
0.01m |
|||
|
Temperature range |
0℃ to +40℃ |
|||
|
Automatic turn-off |
The tool will be automatically off after 30s disabling. |
|||
|
Backlight function |
Shutdown automatically if there is no action of pressing keyboard in 15s |
|||
|
Object of detection |
Joists, AC live wires and Metals |
|||
|
Detection capability |
Joist |
Thickness of wall is 19mm(3/4 inches) |
||
|
AC live wire |
50mm(2 inches) deep away from the wall |
|||
|
Metals |
38mm(1 1/2 inches) deep away from the wall |
|||
|
Power supply |
One 9V battery |
|||
|
Power consumption |
<50mA |
|||
|
Operating temperature |
+5℃～+40℃ |
|||
|
Operating humidity |
30%～70% |
|||
|
Storage environment |
-20℃～+60℃，≤85%（w/o battery） |
|||
|
Size |
170mm×85mm×45mm |
|||
