Bidirectional Ultrasonic Distance Measurement
Overview:
KC-200 bidirectional ultrasonic distance measurement determines the distance to the object through electronic signals with high speed. The tool with built-in computer chip has the function of calculation of room area, volume and so on.
The tool with excellent design owns multinomial patents. Its unique bidirectional dynamic measurement technology makes the effective measurement distance can reach to 30 meters. The tool has the function of long distance measurement. And it is easy to operate and clear to display. It is an ideal tool for building, decoration industries (for example, land agents, upholstery designers and craftsmen, etc)

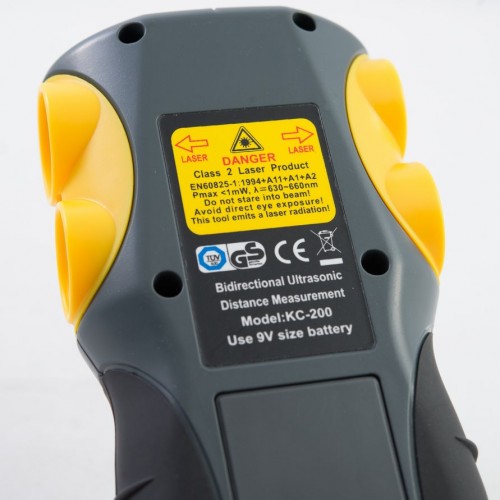

KC-200 bidirectional ultrasonic distance measurement is the Class II laser tool conforming to EN60825-1 safety rule.
Technical Specifications:
Name Bidirectional ultrasonic distance measurement
Type KC-200
Recommended use Indoor
Range of effective measurement Measurement for single direction 0.5~16m
Measurement for bidirectional direction 1~32m
Distance of limit measurement 40m (under the standard test environment)
Accuracy ±1%±1digit
Basement select Left edge, midpoint, right edge
Calculation range Length 9999’ 11’’ (9999.99m)
Area 99999.9 sq ft (99999.9㎡)
Volume 999999 cu ft (999999m3)
Resolution 0.01m
Wavelength of laser 630~660nm
Temperature range 0℃ to +40℃
Laser Class Class II
Power supply One 9V battery
Backlight automatic off The backlight will be automatically off if there’s no action in 15 seconds.(press any key to start the backlight)
Automatic off The tool will be automatically off if there’s no action 60 seconds.
