Infrared Thermometer Wide-Range -40℃~580℃

Retail Price: $189.99
Our Price: $49.99
Ex Tax: $49.99
Sold Recently: 285
Available Stock: More than 20
Product Code: 180B
Product viewed: 7091
Qty:

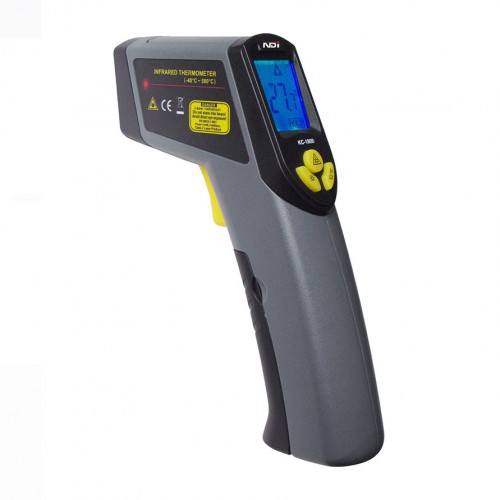

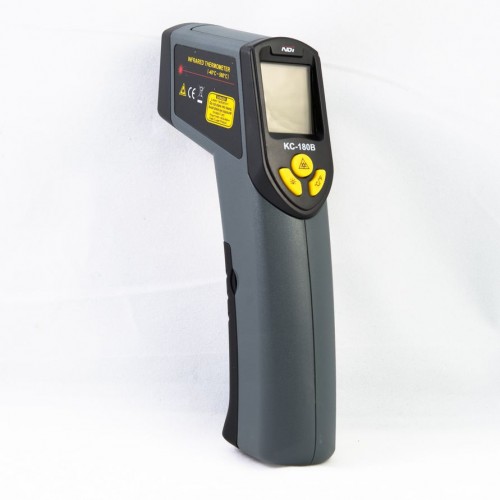

Infrared Thermometer Wide-Range -40℃~580℃ ( Battery not included )

KC-180B Infrared thermometer is a non-contact temperature measuring instrument using infrared technology and laser pointer. You could use this product to measure the surface temperature, which is not suitable for traditional measuring ( such as moving objects, charged objects, toxic objects or hard-to-reach objects).

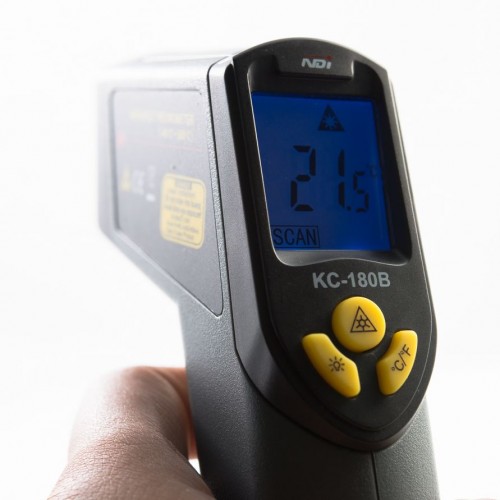

The instrument features a low consumption design. It has a LCD with backlight, a laser pointer for accurate aiming and capable of auto holding the readings. It has the advantages of rapid measuring, easy operation and portability. It is widely used for applications such as finding the hot spot of electric connection and bearing, measuring the hot and high-frequency induction heated objects, monitoring food processing and storage, inspecting temperature for heating & refrigeration system, inspecting temperature for technics control of metallurgy industry, inspecting temperature during laying asphalt and fire-control work, or any other temperature measuring without compromising the temperature field. It is a good measuring tool for the metallurgy, the electric power plant, the chemical industry, the rubber industry, the spinning and weaving, the plastic, the papermaking and the food processing.
KC-180B Infrared thermometer is Class II laser product and in compliance with EN60825-1.

Technical Specifications

Name                                                          Infrared Thermometer
Model                                                                   KC-180B
Measuring range                                      -40℃~580℃(-40℉~1076℉)
Response wavelength                                             8~14μm
Measuring precision                          ±2℃(±3.6℉) or ±2% of reading(when T>0℃)
                                         ±3℃ (±5.4℉) or ±2% of reading, whichever is greater(when T ≤0℃)
Repetition                                                      1% of reading or 1℃
Response time                                         500mSec,95% response
Optical ratio(D:S)                                           12:1
Emissivity                                                                0.95
Display resolution                                                 ±0.1℃
Display resolution                                           630~660nm
Power of laser                                                        <1mW
Laser class                                                            Class II
Laser switch                                          √
Backlight switch                                     √
Data hold                                               √
Temperature units exchange                 √
Low battery indication                            √
Backlight shut off                                   At the same time with readings
Auto turn off for tool                                        No action in 7s
Power supply                                         One 9V battery (6F22/6LR61)
Max. power                                                             <30mA
Operating temperature                               0℃~40℃(32℉~104℉)
Operating humidity                                   RH 0~75% non-condensing
Storage temperature                           -20℃~60℃(-4℉~140℉),≤85%(w/o battery)
Product dimension                                       135mm x 170mm x 36mm
Product weight                                                    About 168g
