Video Inspection Camera Borescope Endoscope 360B-2

Retail Price: $328.90
Our Price: $189.00
Ex Tax: $171.82
Sold Recently: 58
Available Stock: More than 20
Product Code: 360B-2
Product viewed: 12754
Qty:

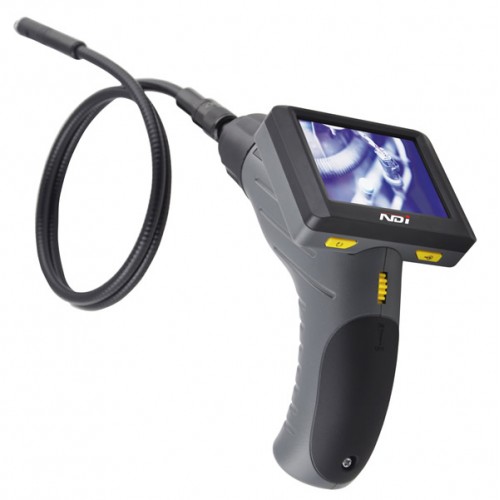

Video Inspection Camera Borescope Endoscope 360B-2

KC-360B-2 Video inspection has been designed as a user friendly and economical way of solving hidden problems and increasing productivity. (e.g. Inspect vent pipe and system of air conditioner, machine equipment, engine and so on).It’s easy for you to make fast diagnosis of equipment, welding, loose parts etc, which can help you to trouble shootting, save the cost, improve the efficiency of your work.


KC-360B-2 with3.5 "high resolution full color LCD screen andclear image. The camera head of the probe with adjustable LED lights, which helps you to reach gaps and holes. The camera head can equip with several accessories, which makes it flexible. The magnetic tip is used to pick up small metal objects. The mirror tip is easy to view the 90° angle. The hook is used to grab onto objects.


The product has features of 2X image zoom and 180°image rotation. It also has the advantages of small size、clear image、stable performance、easy operation and portability. It is widely used in applications such as the industry, the building, the aviation, the vehicles maintenancem,mining industry,archaeology and etc.It can provide excellent performance for your observation, It become as a right-hand man in your daily work and equipment maintenance.


Technical Specifications

Name

Video inspection

Model

KC-360B-2 (3.5’’ LCD screen)

Recommended usage

Indoor

Viewable angle

60 degrees

Focal length

12mm lens

50mm、50cm for your choice



9mm lens

50mm



5.5mm lens

10mm

Outer diameter of camera head

Standard

12mm(attachments: magnet, hook and mirror)



Optional

9mm (accessories: magnet, hook, mirror and screw thread protector)





5.5mm(accessories: mirror, ball guide and screw thread protector)

Probe length (Optional)

12mm lens

1m/2m/3m



9mm lens

1m/2m/3m



5.5mm lens

1m/2m/3m

Probe extension optional

1m、2m、3m

Image display

3.5″TFT/LCD

LCD resolution

320×240 pixel

Image rotation

180°

Image magnification

1.0~2.0 times

Probe and camera head ingress protection standard

IP67

Light source

Ultra high brightness LED

Power supply

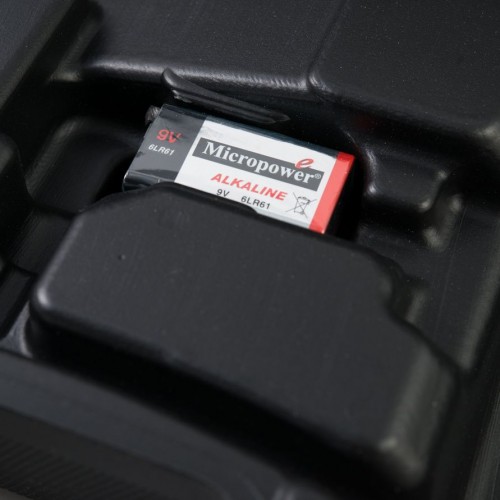

One 9V alkaline battery(6LR61)

Battery life

Over 2hours

Working temperature

0℃~45℃

Working moisture

5%~95%RH non-condensing

Storage

-20℃~+60℃,≤85%(w/o battery)

Dimension of device

215mm×156mm×96mm

Weight

About 256g(w/o battery and probe)
