Video Inspection Camera Borescope Endoscope Wireless Screen Picture Recording 368B

Retail Price: $768.90
Our Price: $399.00
Ex Tax: $362.73
Sold Recently: 30
Available Stock: More than 20
Product Code: 368B
Product viewed: 1953
Qty:

Video Inspection Camera Borescope Endoscope Wireless Screen Picture Recording 368B

368B Multifunction video inspection has been designed as a user friendly and economical way of solving hidden problems and increasing productivity. (eg. Inspect vent pipe and system of air conditioner, machine equipment, engine and so on).

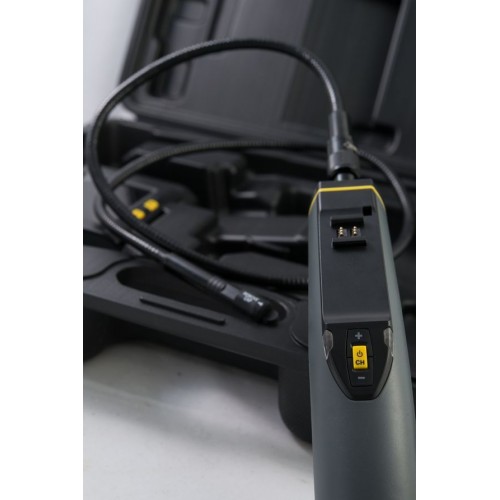

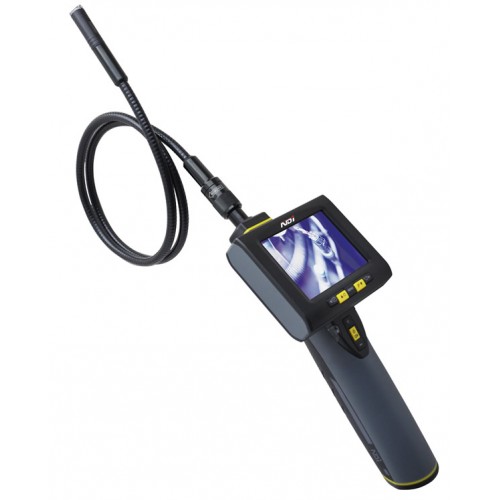

The product has a high clarity color LCD of 3.5 ’’ size. The camera head is connected to the probe and with adjustable LED lights, which helps you to reach gaps and holes. The camera head can equip with several accessories, which makes it flexible. The magnetic tip is used to pick up small metal objects. The mirror tip is easy to view the 90 ° angle. The hook is used to grab onto objects.

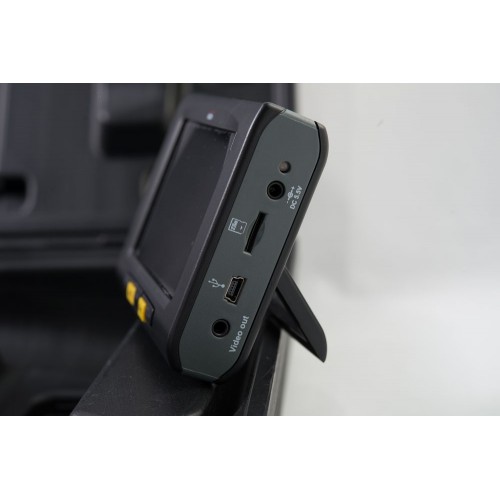

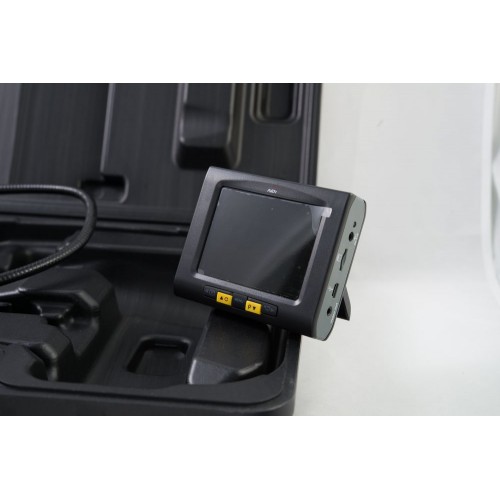

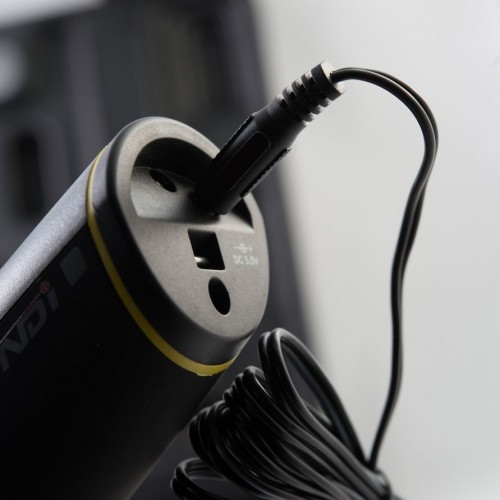

368B can take a photo wirelessly .It has built-in polymer lithium battery, also could use AC adapter for charging with LED indicator. The screen can detach from grip, the back inside magnet facilitate hands-free operation ,having functions of Micro SD interface、TV output interface、USB interface, supporting camera、video、image zoom、rotation、computer connection .etc. It has the advantages of small size、clear image、stable performance、easy operation and portability. It is widely used in applications such as the industry, the building, the aviation, the vehicles maintenance.


Technical Specifications

Name

Multifunction video inspection

Model

KC-368B

Recommended use

Indoor

Viewable angle

60°

Focal length

12mm standard

50mm and 50cm for your choice

9mm optional

50mm

5.5mm optional

10mm

Outer diameter of camera head

Standard

12mm(attachments: magnet, hook and mirror)

Optional

9mm (accessories: magnet, hook, mirror and screw thread protector)

5.5mm(accessories: mirror, ball guide and screw thread protector)

Probe length for choice

12mm camera

1m/2m/3m or customized (max length 5m including extension)

9mm camera

1m/2m/3m or customized (max length 5m including extension)

5.5mm camera

1m/2m/3m or customized (max length 15m including extension)

Extension for choice

1m, 2m, 3m

Image display

3.5″TFT/LCD

Image storage media

Micro SD card (Support up to 16G)

Image resolution

640×480 pixels

LCD Resolution

320×240 pixels

Image zooming

4 times

TV output format

NTSC/PAL

Wireless transmission frequency

2414MHz、2432MHz、2450MHz、2468MHz

Wireless transmission distance

Up to 10M; If no obstacles, will more than 10M

Attachment

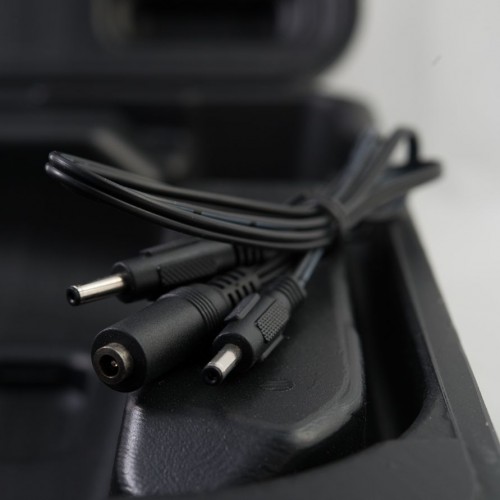

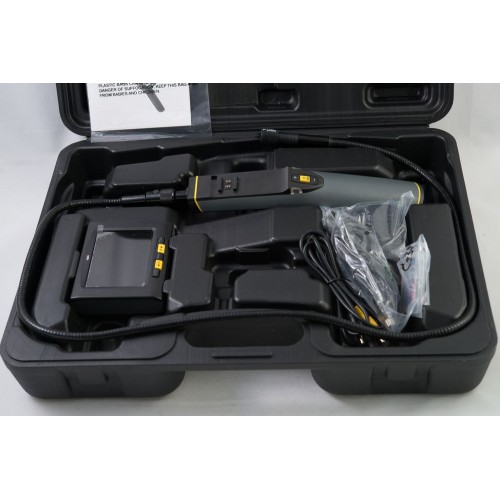

Micro SD card、one into two cable、Micro SD to SD transition pocket、TV cable、USB cable

Probe length

100cm or your required length

Probe and camera head protection

IP67

Light source

High lighting LED

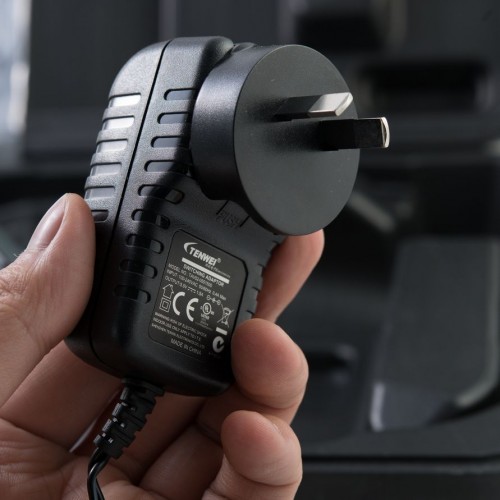

Adapter

INPUT

AC 100~240V(50~60Hz)

OUTPUT

DC 5.5V 1.5A

Inside battery

Polymer Lithium battery

Battery capacity

Grip

1200mAh

Screen

1350mAh

Charging time of inside battery

About 3.5 hours

Battery life

About 2 hours

Operating temperature

0℃~45℃

Operating humidity

RH 5%~95% non-condensing

Storage temperature

-20℃~+60℃,≤85%(w/o battery)

Dimension

Grip

266mm×73mm×80mm

Screen

100mm×82mm×26mm

Weight

Grip

About 155 g(w/o probe)

Screen

About 175 g
