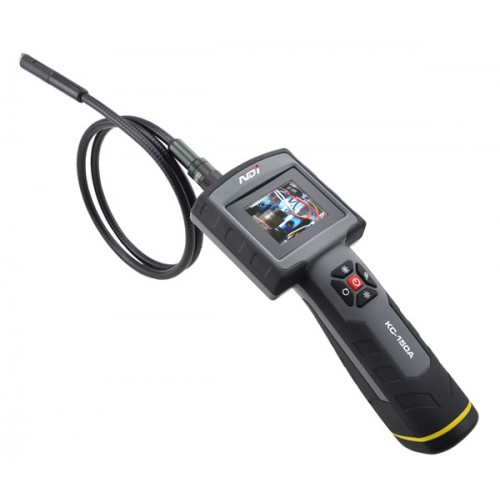

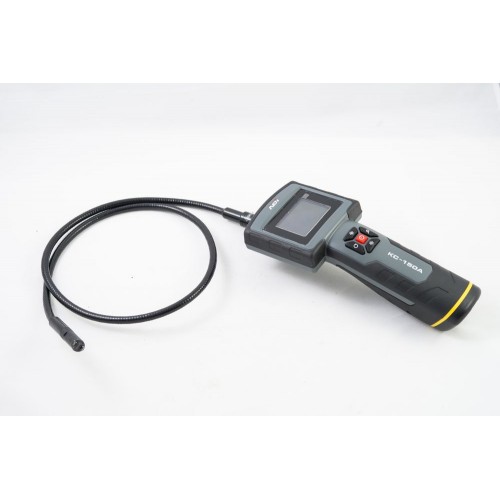

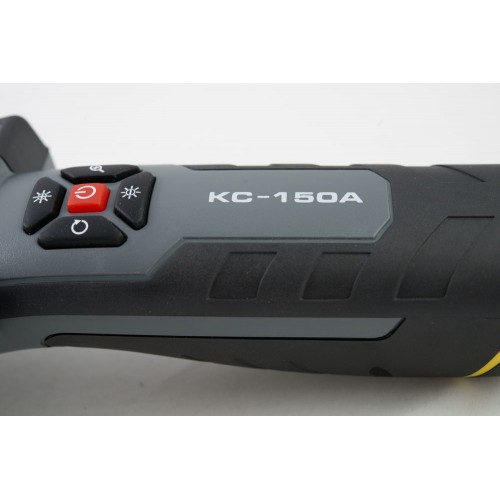

Video Inspection Camera Borescope Endoscope 2.4″LCD 150A
150A video inspection system has been designed as a user friendly and economical way of solving hidden problems and increasing productivity. (e.g. inspect HVAC system, mechanical equipments and engines).

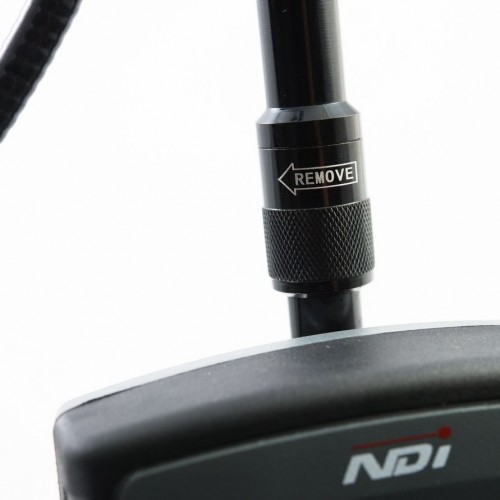

The product has a high clarity 2.4″ diagonal color LCD. It uses interchangeable probes and can be connected to probes with different length and diameter (units comes with a standard 12mm probe, customized camera head and probe also available). The adjustable LED lights set around the camera head help the user to see inside dark gaps and holes. Several accessories can be equipped on the tip of the probe, making it more flexible and adaptive. The accessories of 12mm camera probe are magnetic tip, hook tip and mirror tip.
150A has a TV-out interface to transmit real time images to a TV screen. It is capable of image zooming and image rotation. This model has the advantages of portability, high clarity images, stable performance and easy operation. It is widely used in applications such as the industry, building, aviation, vehicles maintenance, mining and archaeology.
Technical Specifications
Product name Video Inspection System
Model 150A
Recommended usage Indoor
Field of View 60 degrees
Focal length 12mm standard 50mm
9mm optional 50mm
5.5mm optional 10mm
Outer diameter of lens Standard camera lens 12mm (Magnetic tip, Hook tip, Mirror tip included)
Optional camera lens 9mm (Hook tip, Mirror, Magnet, Thread protector)
5.5mm (Mirror, Ball guide, Thread protector)
Probe length 12mm lens 1m/2m/3m or customized (max length 5m including extension)
9mm lens 1m/2m/3m or customized (max length 5m including extension)
5.5mm lens 1m/2m/3m or customized (max length 15m including extension)
Extension for choice 1m, 2m, 3m
Image display 2.4″TFT/LCD
Image resolution 640×480 pixels
LCD resolution 320×240 pixels
Image rotation 180°
Image zooming 1.0~2.0x
TV output format NTSC
Protection level Probe and camera IP67
Main body IP54
Light source Ultra brightness LED
Accessory TV cable

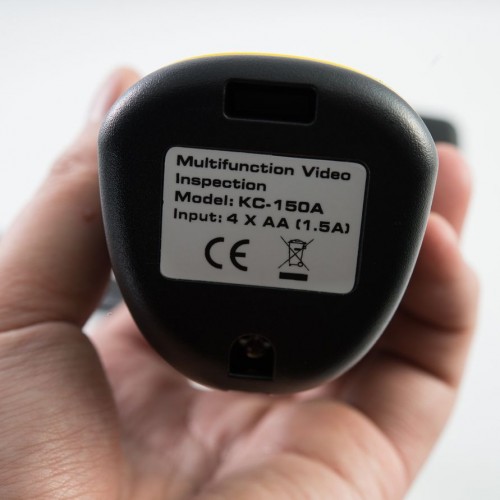

Power supply 4 AA alkaline or rechargeable batteries (LR6 or KR6)
Battery continuous working time >3 hours
Working temperature 0℃~45℃
Working humidity 5%~95%RH non-condensing
Storage -20℃~+60℃,≤85%(w/o batteries)
Dimension 266mm×95mm×66mm
Weight About 360g
