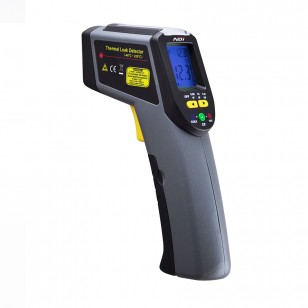

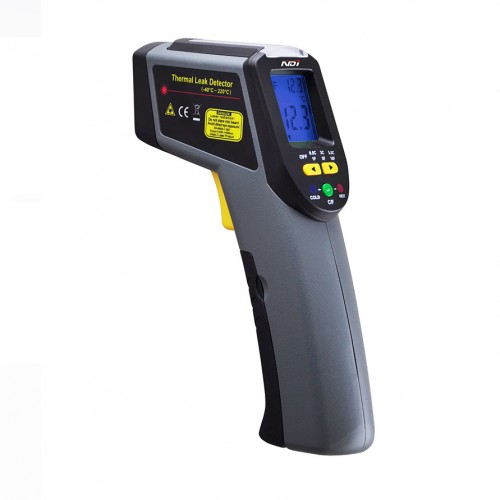

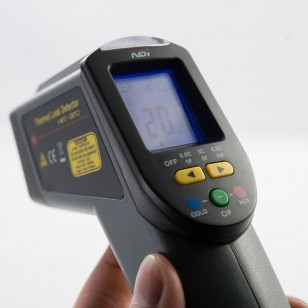

Infrared Thermometer Leakage Detector
186 Thermal Leak Detector is a non-contact temperature measuring instrument using infrared technology. You could use this product to measure the surface temperature, which is not suitable for traditional measuring ( such as moving objects、charged objects、toxic objects or hard-to-reach object).
It has the advantages of low consumption, LCD and backlight, auto save the measuring data and laser pointer. Its easy operation and portability design makes it widely used for applications of finding the hot spot of electric connection and bearing, measuring the hot and high-frequency objects, monitoring food processing and storage, inspecting temperature leak for heating & refrigeration system、inspecting temperature for technics control of metallurgy industry、inspecting temperature during laying asphalt and fire-control work, or any others. It is a good helper for measuring and discovering leak for the metallurgy, the electric power, the chemical industry, the rubber, the spinning and weaving, the plastic, the papermaking and the food processing.etc.
186 is Class II laser product and accords with EN60825-1 safety standard.
Technical Specifications:
|
Name |
Thermal Leak Detector |
|
Model |
KC-186 |
|
Measuring range |
-40℃～220℃(-40℉～428℉) |
|
Response wavelength |
8～14μm |
|
Measuring precision |
±2℃(±3.6℉) or ±2% of reading（when T>0℃） |
|
±3℃(±5.4℉) or ±3% of reading, whichever is greater（when T ≤0℃） |
|
|
Repetition |
1℃ |
|
Response time |
500mSec，95% response |
|

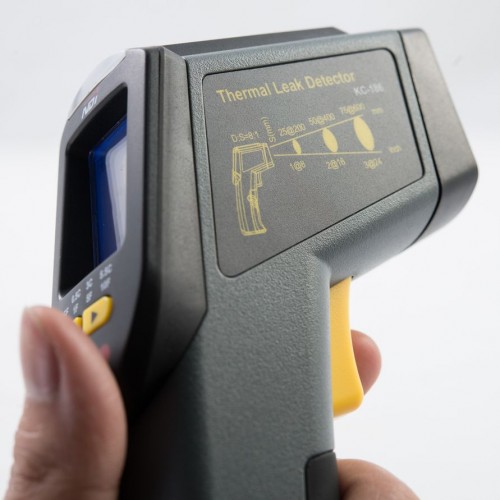

Optical ratio（D：S） |
8：1 |
|
Emissivity |
0.95 |
|
Display resolution |
±0.1℃ |
|
Laser wavelength |
630～660nm |
|
Power of laser |
<1mW |
|
Laser class |
Class II |
|
Data hold |
√ |
|
Temperature units exchange |
√ |
|
High/low warning |
√ |
|
Low battery indication |
√ |
|
Backlight shut off |
No action in 15s |
|
Auto turn off for tool |
No action in 60s |
|
Power supply |
One 9V battery (6F22/6LR61) |
|
Max. power |
<30mA |
|
Operating temperature |
0℃～40℃(32℉～104℉) |
|
Operating humidity |
0～75%RH non-condensing |
|
Storage temperature |
-20℃～60℃(-4℉～140℉)，≤85% |
|
Product dimension |
135 mm×173 mm×42mm |
|
Product weight |
About 167g |
