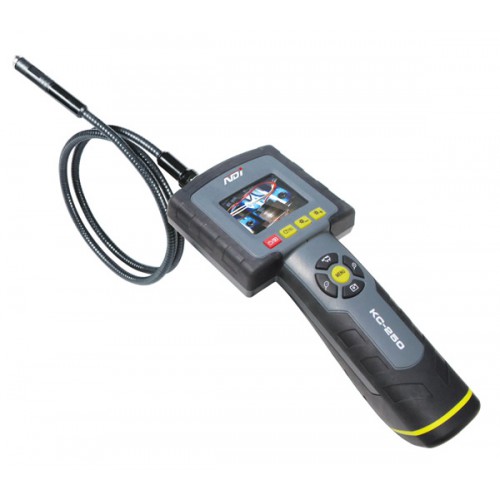

Inspection Borescope 250
KC-250 Multifunction video inspection has been designed as a user friendly and economical way of solving hidden problems and increasing productivity. (e.g. inspect vent pipes, air conditioner system, equipments, engines etc.).
The product has a high clarity color 2.4″LCD. It uses interchangeable probes and can be connected to probes with different length and diameter (product comes with a standard 12mm probe, customized camera head and probes are also available). The camera head is with adjustable LED lights, which helps you to inspect gaps and holes. The camera head can equip with several accessories(magnet, mirror, hook etc.), making it more flexible.
KC-250 has an internal memory (support Micro SD), and is capable to capture videos and take photos both manually and automatically. It has a built-in microphone and a speaker, which makes it possible to record and playback sound. The product has a TV output and a USB port, which allows the users to connect the unit to a TV or a computer. The product also supports image zooming and rotation. It has the advantages of small size, clear image, stable performance, easy operation and portability. It is widely used in applications such as the industry, the building, the aviation, the vehicles maintenance.
Technical Specifications
|
Name |
Multifunction video inspection |
|||
|
Model |
KC-250 |
|||
|
Recommended use |
Indoor |
|||
|
Image sensor |
CMOS image sensor |
|||
|
Viewable angle |
60° |
|||
|
Diameter of camera head |
Standard camera head |
12mm（Magnetic tip, Hook tip, Mirror tip included） |
||
|
Optional camera diameters |
9mm （Hook tip, Mirror, Magnet, Thread protector for selection） |
|||
|
5.5mm（Mirror, Ball guide, Thread protector for selection） |
||||
|
Focal length |
12mm standard |
50mm and 50cm for your choice |
||
|
9mm optional |
50mm |
|||
|
5.5mm optional |
10mm |
|||
|
Probe length for choice |
12mm camera |
1m/2m/3m or customized (max length 5m including extension) |
||
|
9mm camera |
1m/2m/3m or customized (max length 5m including extension) |
|||
|
5.5mm camera |
1m/2m/3m or customized (max length 15m including extension) |
|||
|
Extension for choice |
Extension for choice |
|||
|
Protection level |
Probe and camera |
IP67 |
||
|
Main body |
IP54 |
|||
|
Light source |
Ultra bright LED |
|||
|
Image display |
2.4″TFT/LCD |
|||
|
Image resolution |
640×480 pixels |
|||
|
LCD resolution |
320×240 pixels |
|||
|
Image zooming |
4 times |
|||
|
TV output format |
NTSC/PAL |
|||
|
USB output mode |
Portable storage mode（USB Disk） |
|||
|
Real time image output mode（USB Camera） |
||||
|
Storage medium |
64MB internal memory |
|||
|
Micro SD（support up to 16G）,optional |
||||
|
Accessory |
TV cable, USB cable, driver CD |
|||
|
Power supply |
4 AA alkaline or rechargeable batteries (LR6 or KR6) |
|||
|
Battery continuous working time |
>2 hours |
|||
|
Working temperature |
0℃～45℃ |
|||
|
Working humidity |
5%～95%RH non-condensing |
|||
|
Storage Condition |
-20℃～+60℃，≤85%（w/o batteries） |
|||
|
Main body dimension |
270mm×75mm×100mm（w/o probe） |
|||
|
Main body weight |
About 385g（w/o batteries and probe） |
|||
