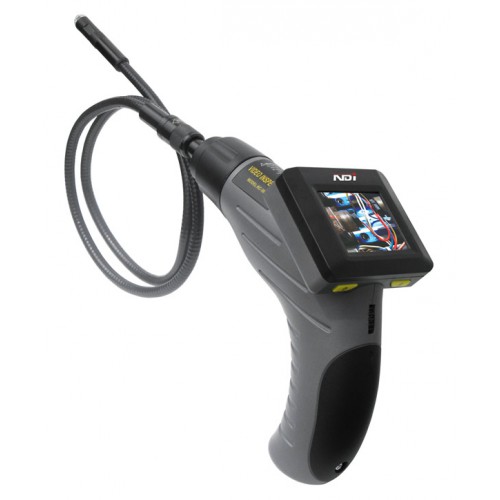

Inspection Camera 360A-2
360A-2 Video inspection has been designed as a user friendly and economical way of solving hidden problems and increasing productivity. (e.g. Inspect vent pipe and system of air conditioner, machine equipment, engine and so on).It’s easy for you to make fast diagnosis of equipment, welding, loose parts etc, which can help you to trouble shootting, save the cost, improve the efficiency of your work.

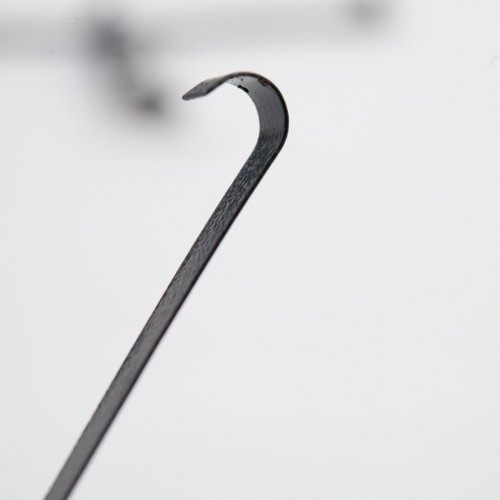

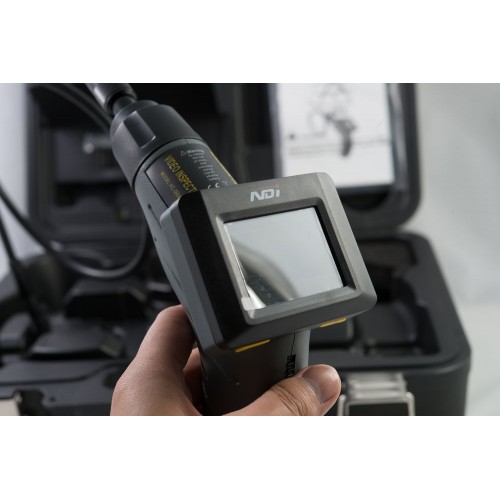

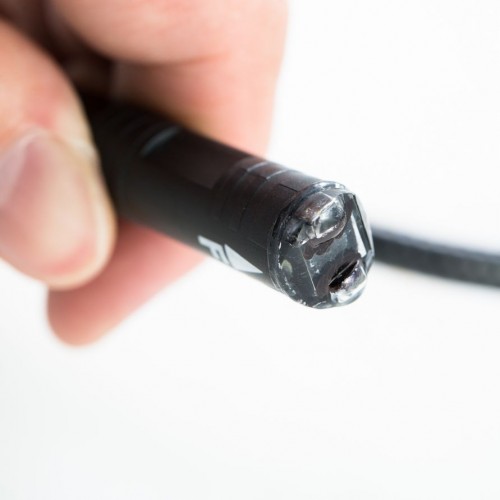

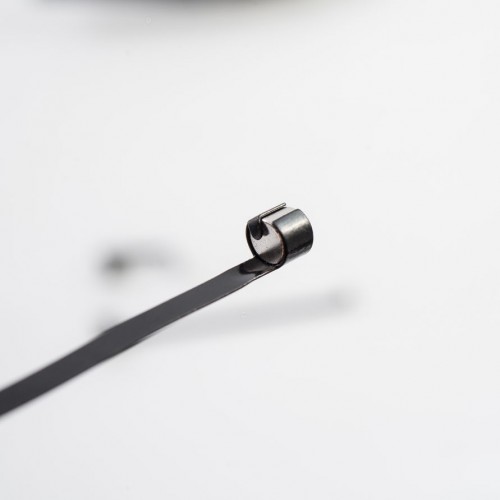

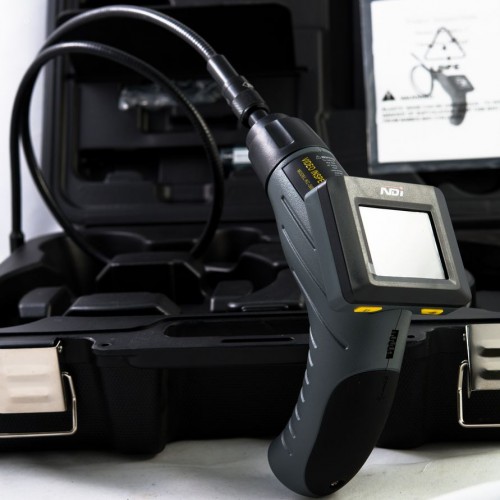

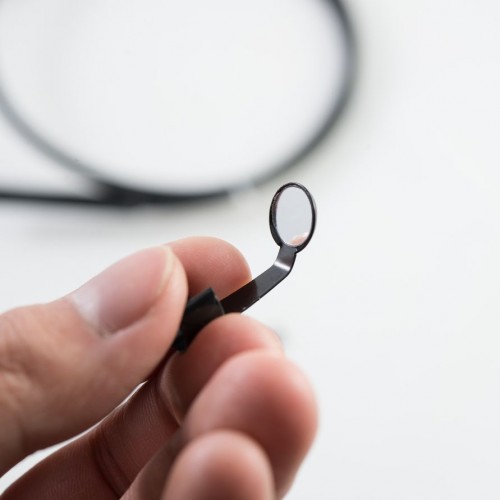

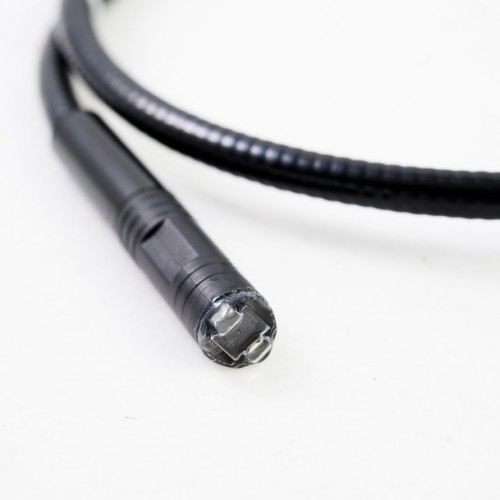

360A-2 with 2.4 "high resolution full color LCD screen andclear image. The camera head of the probe with adjustable LED lights, which helps you to reach gaps and holes. The camera head can equip with several accessories, which makes it flexible. The magnetic tip is used to pick up small metal objects. The mirror tip is easy to view the 90° angle. The hook is used to grab onto objects.
The product has features of 2X image zoom and 180°image rotation. It also has the advantages of small size、clear image、stable performance、easy operation and portability. It is widely used in applications such as the industry, the building, the aviation, the vehicles maintenancem,mining industry,archaeology and etc.It can provide excellent performance for your observation, It become as a right-hand man in your daily work and equipment maintenance.
Technical Specifications
Name Video inspection

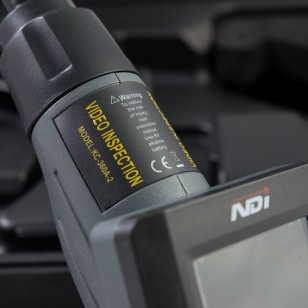

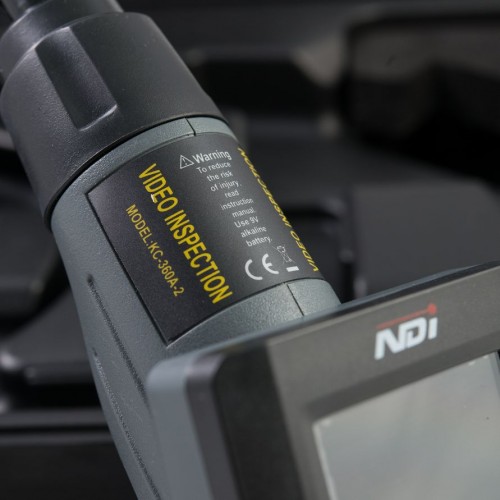

Model KC-360A-2 (2.4' LCD screen)
Recommended usage Indoor
Viewable angle 60 degrees
Focal length 12mm lens 50mm
9mm lens 50mm
5.5mm lens 10mm
Outer diameter of camera head Standard 12mm（attachments: magnet, hook and mirror）
Optional 9mm （accessories: magnet, hook, mirror ）
5.5mm（accessories: mirror, ball guide ）
Probe extension (Optational) 1m、2m、3m
image display 2.4″TFT/LCD
image resolution 320×240 pixel
image rotation 180°
image magnification 1.0～2.0times
Probe and camera head ingress protection standard IP67
Light source Ultra high brightness LED
Power supply One 9V alkaline battery（6LR61）
Battery life Over 2.5hours
Working temperature 0℃～45℃
Working moisture 5%～95%RH non-condensing
Storage -20℃～+60℃，≤85%（w/o battery）
Dimension of device 215mm×156mm×80mm
Weight About 218g
